New PP2000 for Citroen Tools Lexia3 Diagbox V9.150 Diagnostic Tool Car Repair Automobiles Parts Accessories

New PP2000 For Citroen Tools Lexia3 Diagbox V9.150 Diagnostic Tool Car Repair Automobiles Parts Accessories

Note:
If you need to diagnose a vehicle produced before 2010, this tool is not suitable and you need to purchase the full chip version! !

The CD software is V9.150. If your computer cannot read the CD, you can contact me to get the download link. New PP2000 only supports models in Diagbox 9.150 (other older software cannot be used). After the software is installed, you need to connect the device and vehicle to open the software. If you need to diagnose an old car (using Lexia software), you need to purchase the full-chip version.

Citroen/DS vehicle online services:

1.Vehicle control unit software online programming;
2.Vehicle control unit software online automatic configuration (telecoding);

Use cases:

1.Control unit software updates;
2.Data misconfiguration repair after power loss;
3.Control unit replacement;
4.Reset services after certain repairs.

Applicable vehicles:

Citroën, DS, all vehicles after 2015/16, excluding the OPEL brand.

Required hardware:

ACTIA XS-Evolution(Lexia3, PP2000) - genuine or cloned version. Special attention should be paid that some cloned versions will be blocked by PSA when doing online and cannot be carried out online.
PSA VCI Core XS

How to provide services: 2 ways

Way 1: USB device sharing, suitable for areas with very good networks. The client does not need to install the genuine Diagbox software, but the following software needs to be used:
1. Anydesk
2. USB NETWORK Gate
3. Radmin

Way 2: Install the genuine Diagbox software remotely on the client through Anydesk. After the service is completed, the software will be uninstalled.

Requirements for the computer on which the software is installed:

WIN10 OS 64-bit;
Reserve 10G of space on the C drive

Special matters:

1. When online programming or automatic configuration, the server will compare the actual installed hardware and software numbers on the vehicle. Therefore, second-hand accessories or accessories of other vehicle models may not be recognized by the background server and cannot be carried out online.
2. Due to the time difference, it is recommended to extract the reserved service time.
3. Online services do not include fault diagnosis

Supported functions

Unlike other universal car scanner tools which only read fault codes, this software performs nearly ALL the functions like the original dealer diagnostic tool. Our diagnostic interface contains K-Line multiplexor, CAN-BUS interfaces and SAE J1850 bus (both PWM and VPW).

The following diagnostic functions are supported

1.Read identification
Displays complete identification of control unit, e.g. part number, software/hardware version, manufacturer, etc...

2.Read fault codes
Displays all stored and pending fault codes with complete description (e.g. "Rail pressure - too low pressure").
Program supports report printing or copy to clipboard.

3.Clear fault codes
This function clears all stored fault codes and other diagnostic information.

4.Auto-scan (complete car scan/test)
Detects all ECUs (electronic control units) installed in car and reads all diagnostic fault codes.

5.Measured Values
Program displays live Data like Engine Speed, Battery voltage, Oxygen Sensor, Coolant Temperature, etc. Values can be displayed in graph, 9 values at once, or full listing (all measured values). Logging to file is also supported,which allows offline analysis.

6.Actuator test
Actuator test activates particular actuator (e.g. turn on fuel pump, lock/unlock wheel, lock/unlock doors, cut off fuel, etc..)

7.Programming functions/Adaptation
This feature is of great importance in all vehicles because systems like Engine control units, Immobilizers, Airbags, Alarms, Body Control Units, and some others, require you to perform reset or programming procedures after car repair is done, or even configuration after replacing broken 8.Control Unit

Language:

English,German,French,Japanese,Russian,Spanish,Portuguese,Swedish,Turkish,Dutch,Polish,Italian,Hungary,Greek,Czech

Warm prompt:

1 :CD software is very easy broken during long time shipping, if you received Broken CD, pls contact with us, we will send download link to you.
2:Please close anti-virus programmer and internet when install software, Otherwise the file will be attacked or delete. Please take easy, software in CD are safe to your compute
3:The software need be installed on Win7 System. It's more stable for installing software on Win7 64bit.
Pls don't install l-exia and pp2000 software together with diagbox software in one pc. diagbox software has included pp2000 and l-exia software , Diagbox need be installed in one laptop individually.

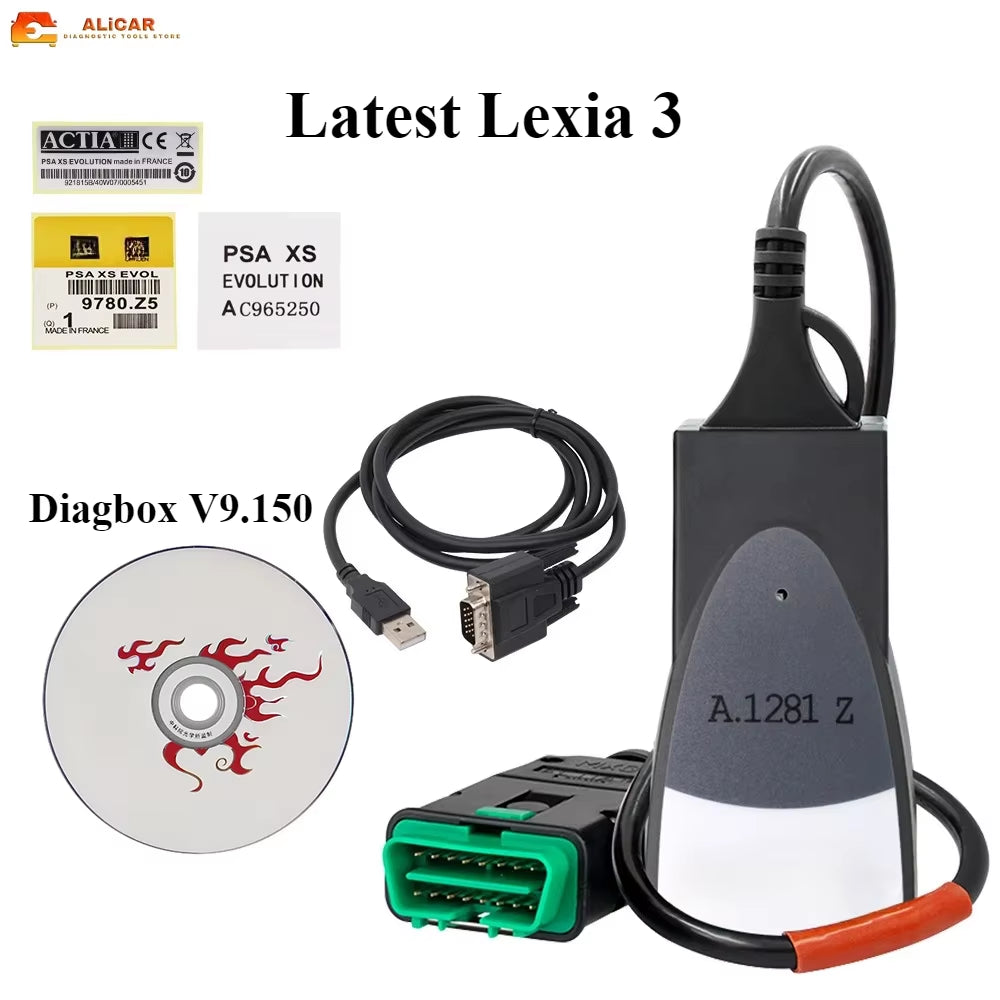

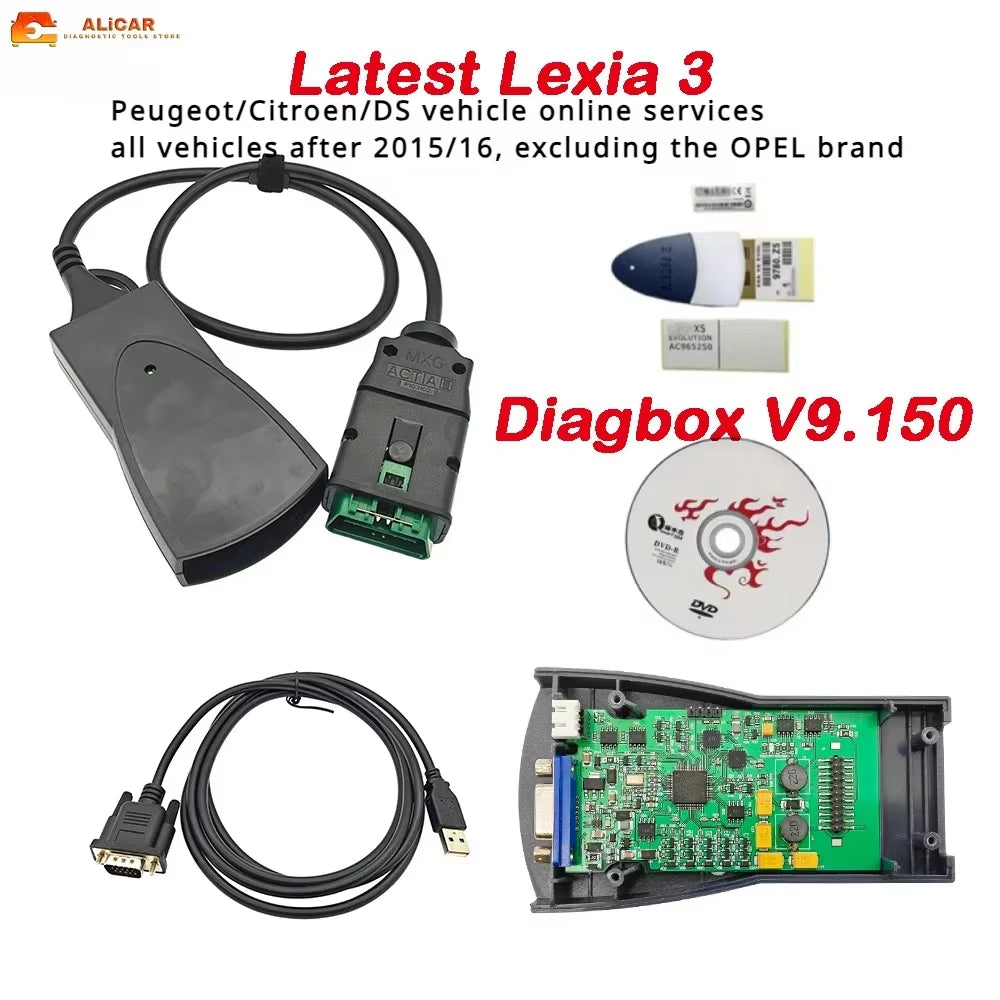

Package List:

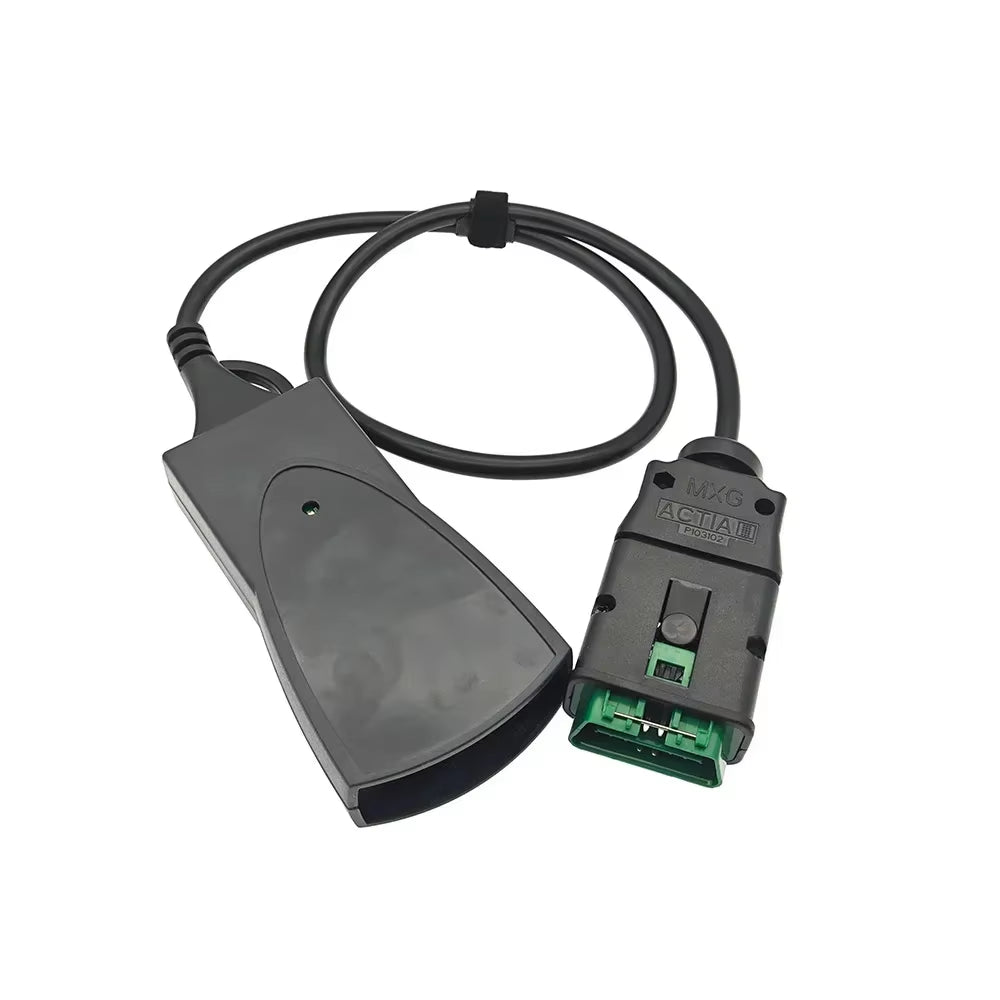

Main unit

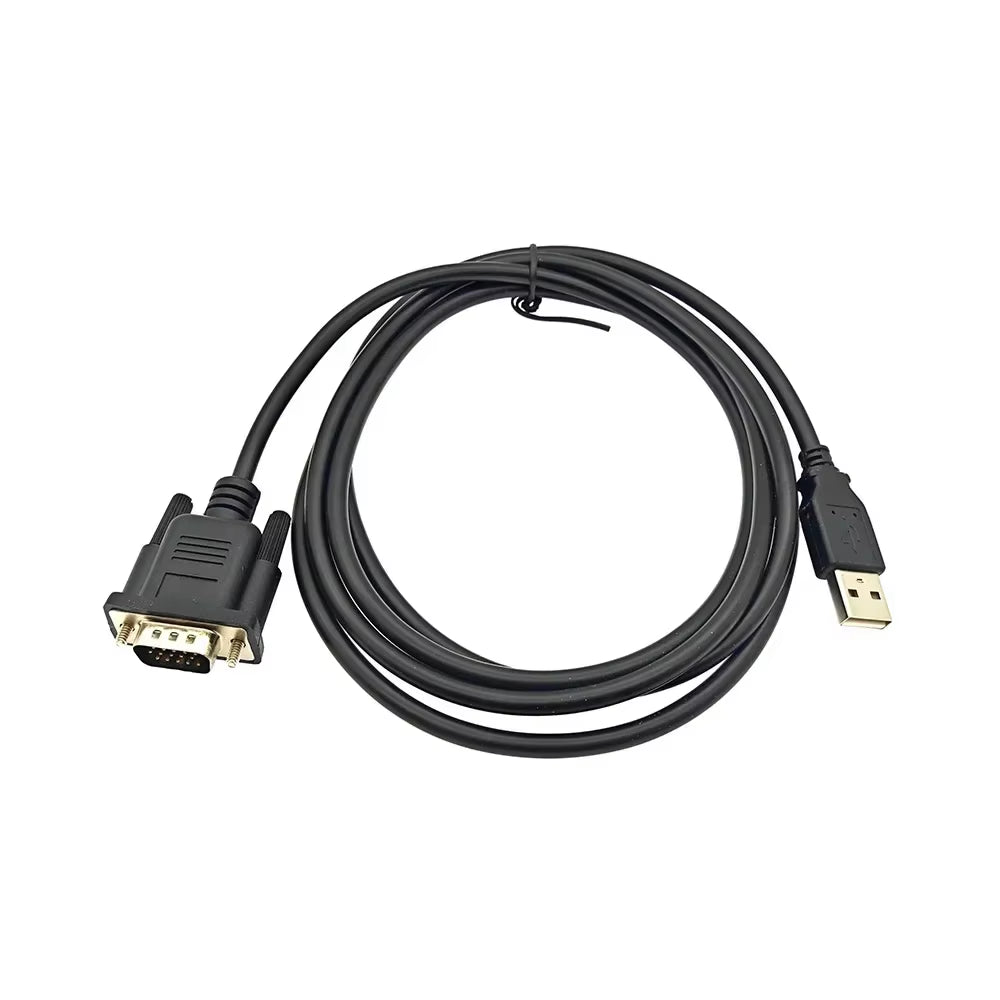

USB cable
Software CD
